Digital Contact Sensor

High-accuracy typeMT2 Series

标准弹簧直线型 12mm 0.1μm

Other Models

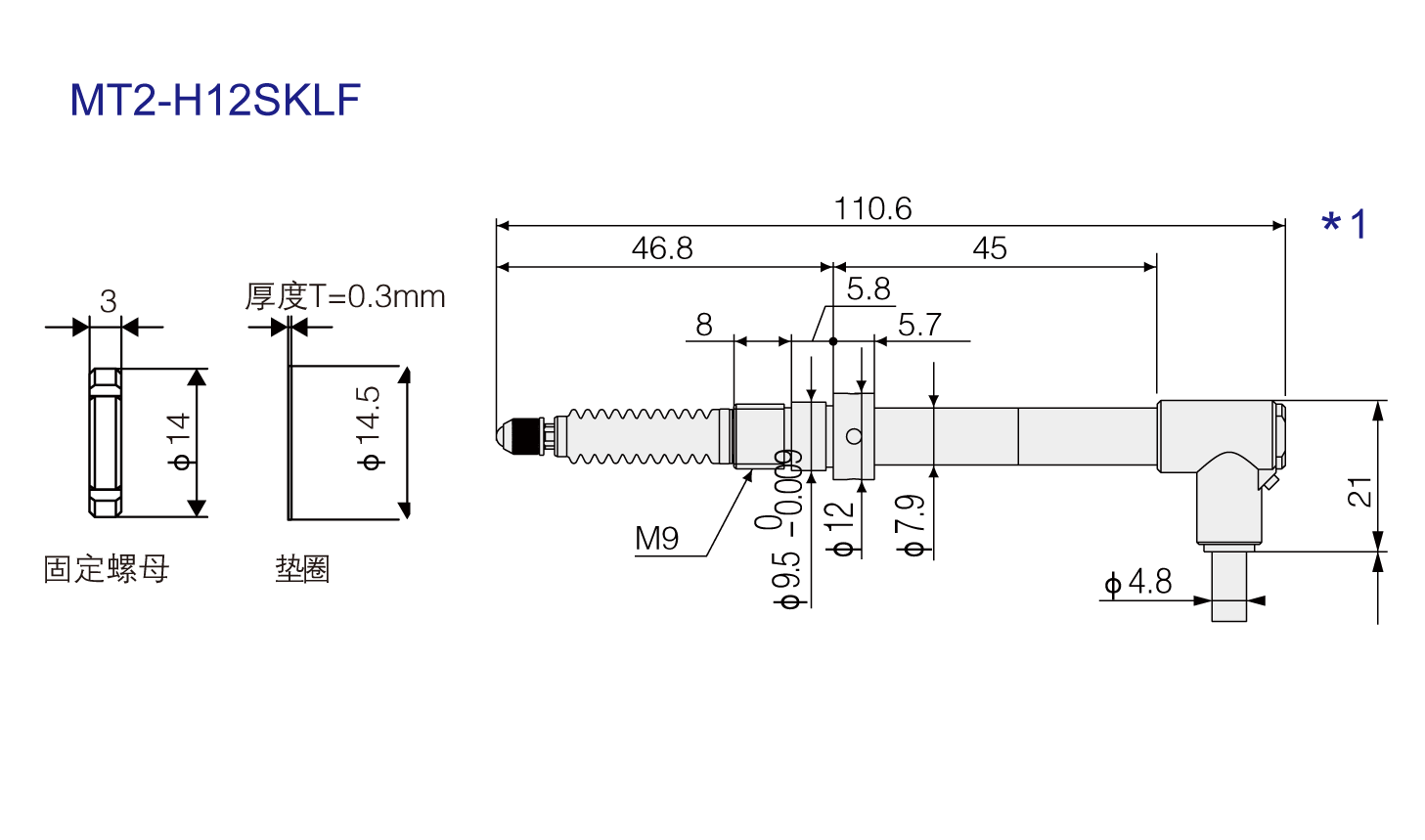

MT2-H12SKLF

Specifications

型号 标准弹簧直线型 MT2-H12SKLF
类型 高分辨率
高速型
检测距离 12mm
最高分辨率 0.1μm
精度(20℃) 1μm
测定力(20℃) 空压型:0.055MPa时 上方位:0.6±0.5N;横方位:0.7±0.5N;下方位:0.8±0.5N;
最大反应速度 0.7m/s
原点位置 轴心移动1mm位置
原点反应速度 0.7m/s
感测头驱动方式 见上计类型
防护等级 直型IP67;直角型IP64(在Ф4mm管连接时IP67)
感测头部 起硬合金球面安装螺丝M2.5
质量 30g
使用温度范围 0至+50℃
保存温度范围 -20至+60℃
耐振动 100m/s²(20~2000HZ)
耐冲击 1000m/s²(11ms)
消耗功率 1W以下
附属品 见使用说明书
感测头电缆长度 2.4m
