| Models | With SF focusing lens | TS-D500K |
| Typology | Standard type | |
| Temperature range | Celsius temperature (°C) | 0°C to 500°C |
| Temperature in Fahrenheit (℉) | 32℉ to 932℉ | |
| operating wavelength | 8~14μm | |
| Optical resolution (90% energy) | 15:1 | |
| Temperature resolution | 0.1℃ | |
| output method | analog output | - |
| digital output | RS485 | |
| Other outputs | Tpyek | |
| Emissivity | 0.100~1.000 (set by software, software sold separately) | |
| Signal Processing | Peak, valley, average (set via software, software sold separately) | |

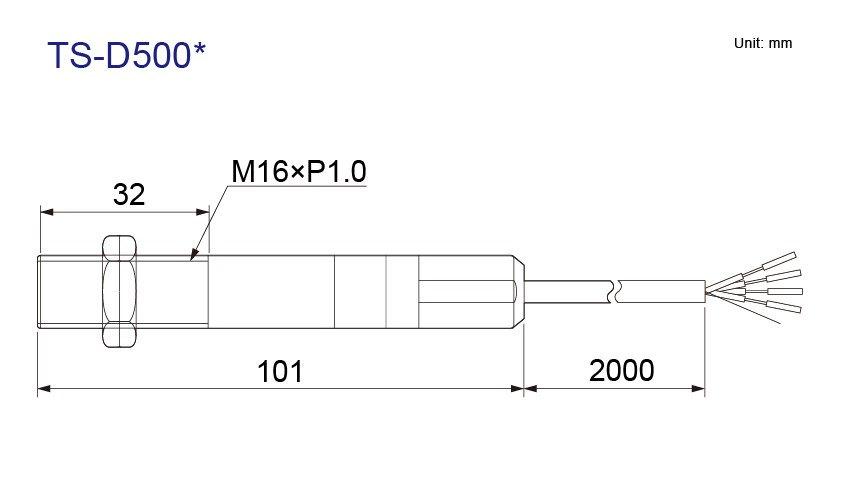

| Mounting Threads | M16×1 | |
| Accuracy | ±1% or ±1.5°C | |
| Repeatability | ±0.5 or ±1℃ | |
| Supply Voltage | 12~24VDC | |
| Maximum Consumption Current | 50mA | |
| Maximum load | 500Ω | |
| Protection class | IP65 (NEMA-4) | |
| Working Temperature | 0°C to 70°C (non-freezing) | |
| Relative humidity | 10% to 95% (non-condensing) | |
| Cable Temperature | -20°C to 80°C (non-freezing) | |
| Response time (95% energy) | 150ms | |
| Material | Stainless steels | |
| Cable | 2m, 5m, 10m optional | |
| Weight | Approx. 280g | |
