Colour Sensors

White Light LED Intelligent Type- LA-F10 Series

Amplifier

Appearance Type Response time Output type Model
White Light
LED Intelligent

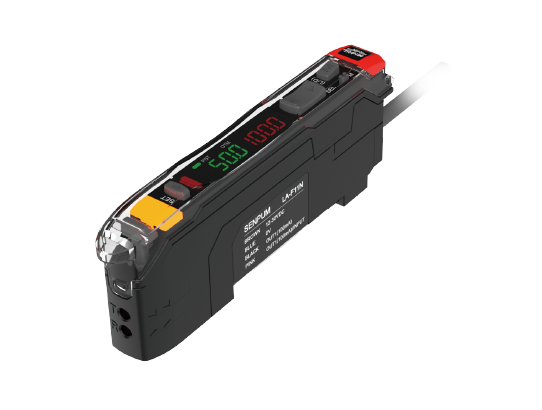

Main module 80us(SHS)/250us(HS)/1ms(STND)/16ms(GIGA) switchable NPN LA-F11N
PNP LA-F11P
NPN/PNP LA-F11

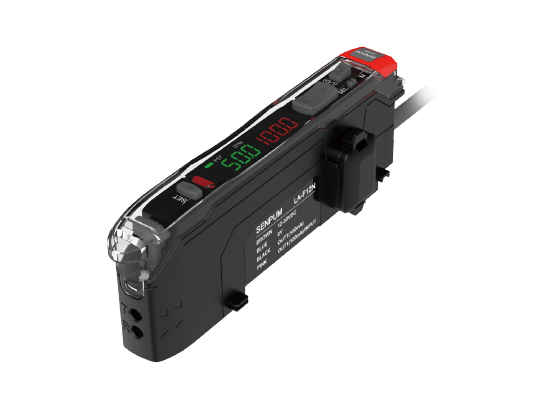

Expansion module NPN LA-F12N
PNP LA-F12P
NPN/PNP LA-F12


Sensor head
Appearance Type Detecting distance Spot diameter Model

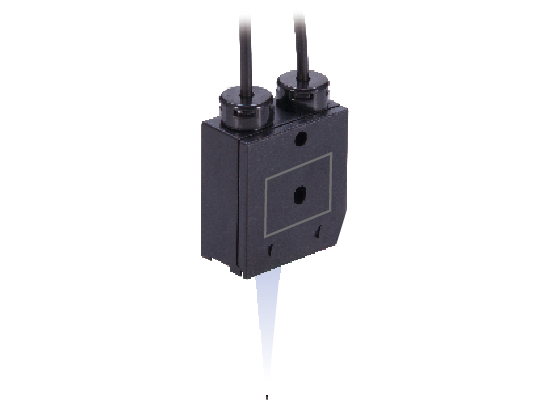

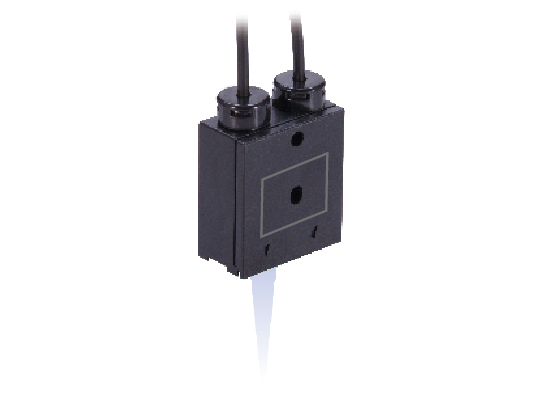

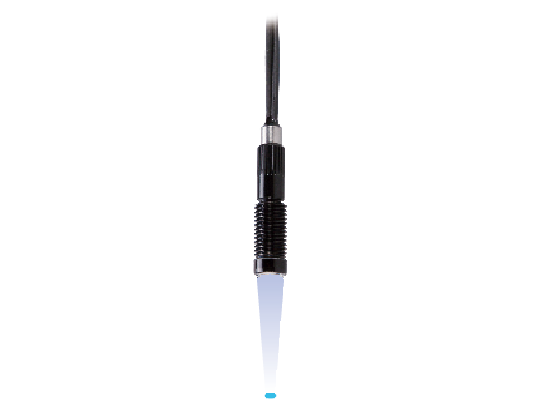

Adjustable small light spot 10~30mm Φ0.9-3.5mm LA-F20

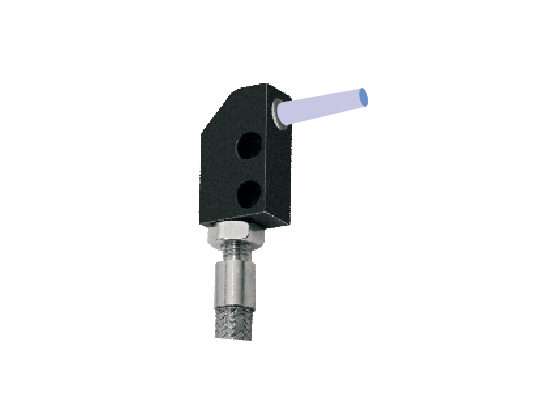

Side-view adjustable small light spot 3~15mm Φ0.9-1.5mm LA-F22
Long-distance 70±20mm Φ6mm LA-F24
Small light spot 16±4mm Φ1mm LA-F25
Long-distance 60±10mm Φ2mm LA-F26
Area type 5~20mm - LA-F28


Fiber unit
Appearance Type Detecting distance Spot diameter Model

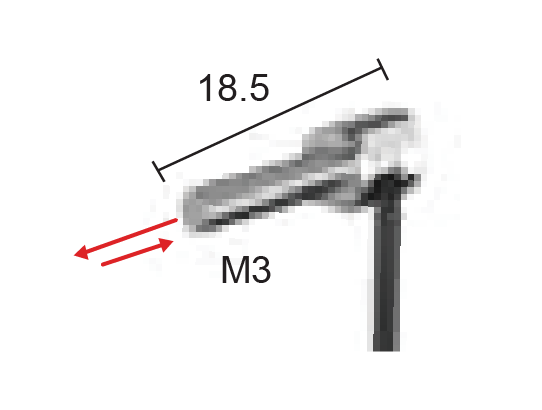

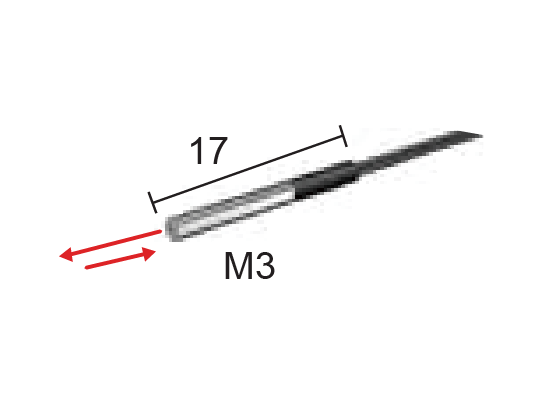

Screw mounting 0~400 M3 nut type coaxial SP-136TZ

0~450 M3 straight coaxial SP-136FZ

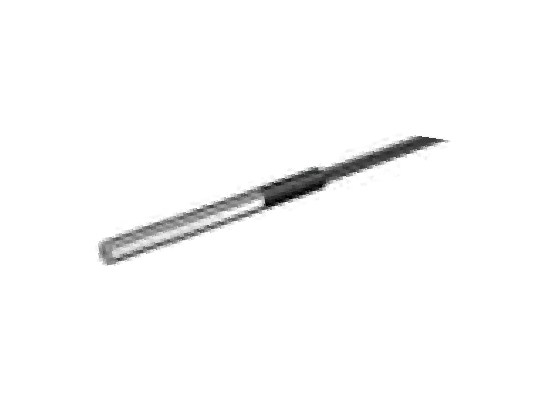

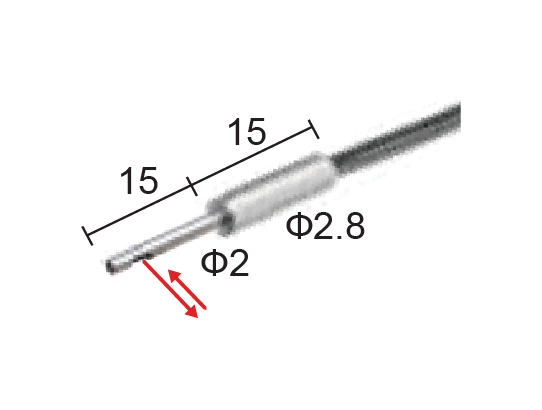

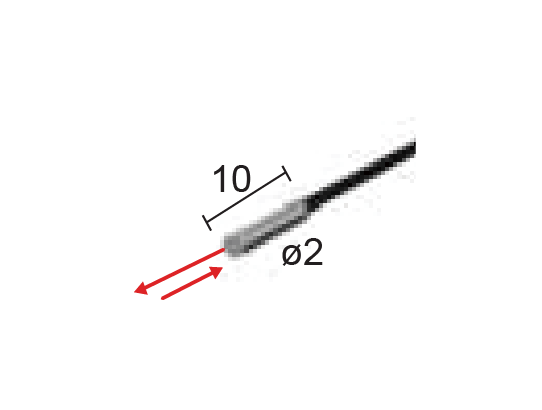

Cylindrical (Screw mounted) 0~140 Φ2 SP-150U

Small light spot ( reflective ) - Ф0.9~3.5mm SP-111

- Ф0.1mm SP-121

Narrow beam/High power 0~2300 - SP-141

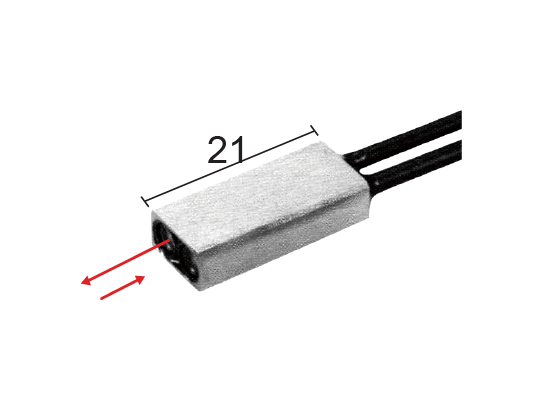

Casing type 0~180 Ф2 SP-132

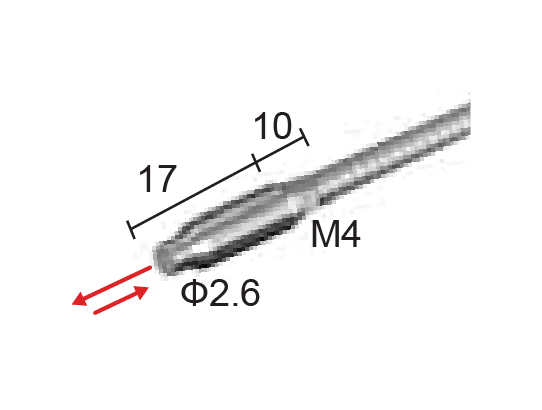

Heat-resistant type 0~770 Ф2.6 SP-584C


Lens+fiber unit
Fibre unit appearance Fibre unit model Spot diameter Adaptable lens model Lens appearance

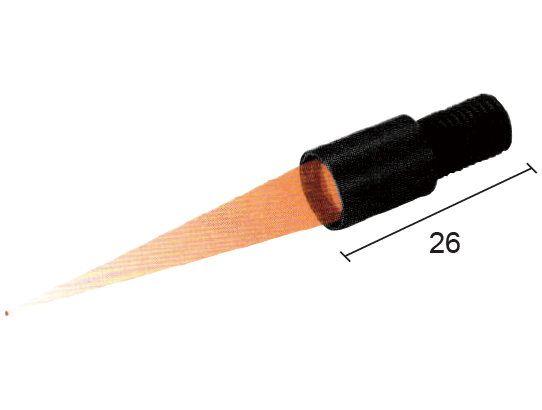

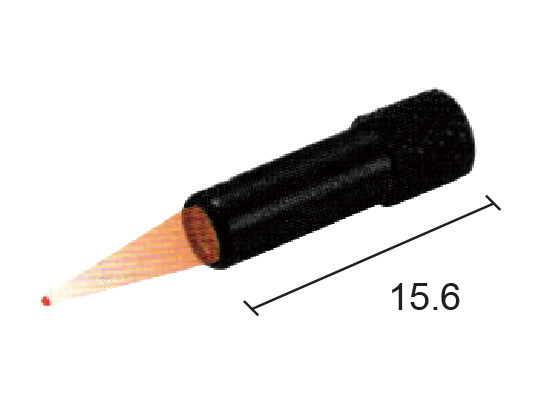

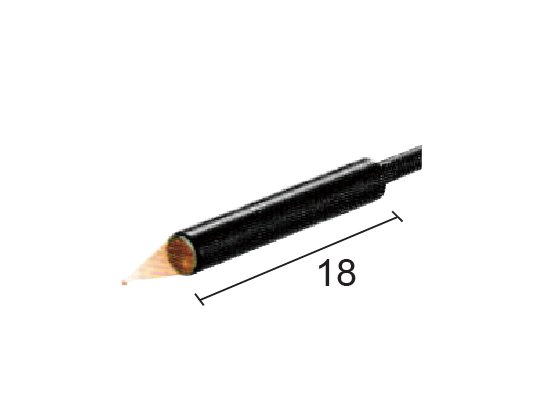

SP-122X Approx. Ф0.2 P-14HA

P-12HA:

P-14HA:

P-15HA:

SP-125X Approx. Ф0.1
SP-136FA Approx. Ф0.4 P-14HAP-15HA
SP-136FG Approx. Ф0.4

SP-136FZ Approx. Ф0.4 P-12HAP-14HAP-15HA
SP-136TG Approx. Ф0.4

SP-136TZ Approx. Ф0.4



Lens+fiber unit

Fibre unit appearance Fibre unit model Spot diameter Adaptable lens model Lens appearance
SP-111 Ф0.9~3.5 - -
SP-136FA Approx. Ф0.4 P-16HA
SP-136FG Approx. Ф0.4 P-15HA
SP-121 Approx. Ф0.1 - -
