Sensor head
Appearance | Standardized testing deviation | Measuring distance (mm) | Laser type | Model | ||
![]() | 0.5mm | 20~45 | Class 2 | LA-H45 | ||
Class 1 | LA-H45L | |||||
![]() | 1mm | 55~130 | Class 2 | LA-H130 | ||
Class 1 | LA-H130L | |||||
![]() | 3mm | 160~450 | Class 2 | LA-H450 | ||
Class 1 | LA-H450L | |||||
![]() | 20mm (detecting distance is 200-800mm) 30mm (detecting distance is 800-1000mm) | 200~1000 | Class 2 | LA-H1000 | ||
Class 1 | LA-H1000L |
Controller
Appearance Type Output type Model
DIN rail mounting NPN LA-21 PNP LA-21P
NPN LA-22 PNP LA-22P

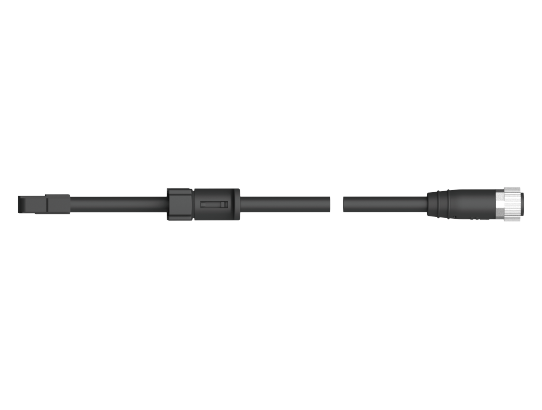

Cable (extension cable for connection between the sensor head and the controller) Optional
Appearance Sensor side Cable termination Material Cable length Model
M10 4PIN Straight Controller Highly flexible drag chain type 2M OW-LAH2000 5M OW-LAH5000 10M OW-LAH10M 20M OW-LAH20M
