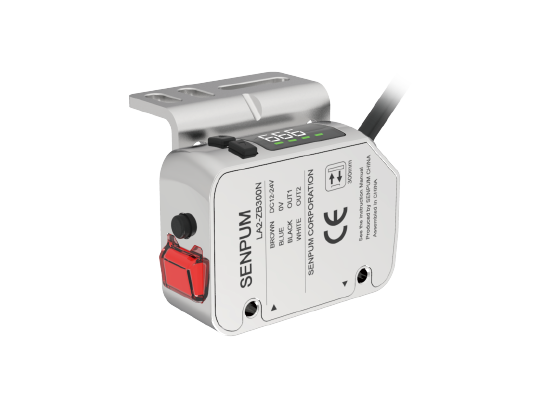

Standard type
| Appearance | Detecting distance (mm) | Spot diameter | Output type | Model |
 |  | Approx. 1*2mm at 100mm | NPN | LA2-ZB100N |
| PNP | LA2-ZB100P | |||
| |  | NPN | LA2-ZB150N | |
| PNP | LA2-ZB150P | |||
| |  | Approx. 1*2mm at 100mm | NPN | LA2-ZB250N |
| PNP | LA2-ZB250P | |||
| |  | NPN | LA2-ZB300N | |
| PNP | LA2-ZB300P | |||
| |  | Approx. Ф2mm at 500mm | NPN | LA2-ZB500N |
| PNP | LA2-ZB500P | |||
| |  | NPN | LA2-ZB600N | |
| PNP | LA2-ZB600P |
Relay type
| Appearance | Detecting distance (mm) | Spot diameter | Output type | Model |
 |  | Approx. 1*2mm at 100mm | NPN | LA2-ZB100CAN |
| PNP | LA2-ZB100CAP | |||
| |  | NPN | LA2-ZB150CAN | |
| PNP | LA2-ZB150CAP | |||
| |  | Approx. 1*2mm at 100mm | NPN | LA2-ZB250CAN |
| PNP | LA2-ZB250CAP | |||
| |  | NPN | LA2-ZB300CAN | |
| PNP | LA2-ZB300CAP | |||
| |  | Approx. Ф2mm at 500mm | NPN | LA2-ZB500CAN |
| PNP | LA2-ZB500CAP | |||
| |  | NPN | LA2-ZB600CAN | |
| PNP | LA2-ZB600CAP |

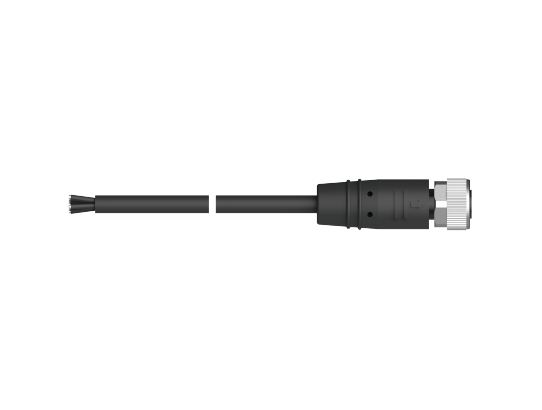

Appearance Sensor side Cable termination Cable length Model
M8 4PIN Straight Loose wires 2M OW-LAZ2000 5M OW-LAZ5000 10M OW-LAZ10M 20M OW-LAZ20M

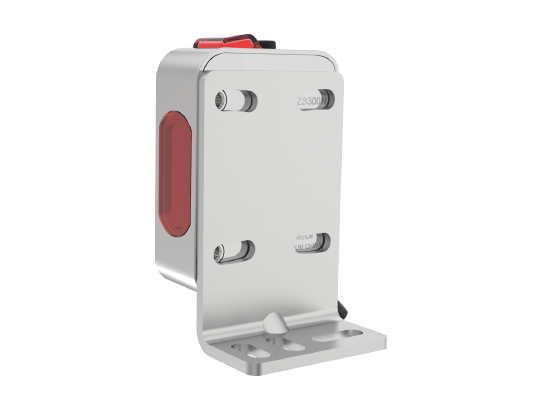

Mounting bracket
Appearance Type Material / Weight Model
Standard mounting bracket (t = 2)
(M3 screws × 2 pieces included) SUS316L
Approx. 24 g N-100
Rear mounting bracket (t = 2)
(M3 screws × 2 pieces included) N-200
Fastening mounting bracket (t = 3)
(M3 screws × 2 pieces included) SUS316L
Approx. 155 g N-300
